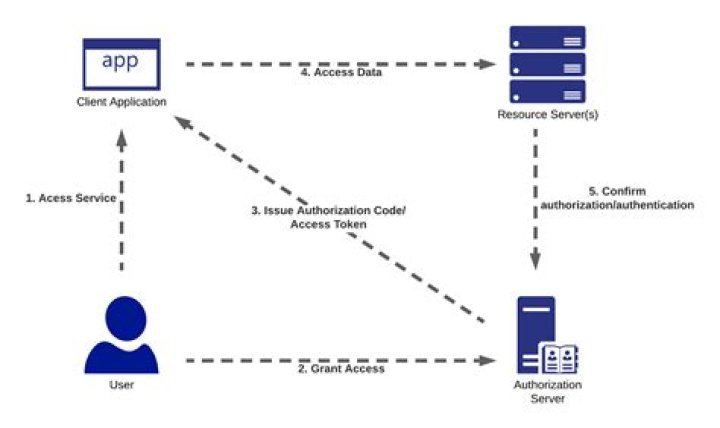

Authentication workflow:

The following video (4:23) gives an overview of token-based authentication for every API call.

This video was recorded using the earlier version of  AR System but is valid for  AR System 9.1 and later versions.

Application credential requirements

The client must create a POST call and pass the user name, password, and authString in the Request headers using the /x-www-form-urlencoded content type.

The  AR System server then performs the normal authentication mechanisms to validate the credentials. If the credentials are valid, the  AR System server generates a JSON Web Token (JWT).

You can attempt a REST API call if you have a token. A single JWT token is valid for one hour. You can use a single token across multiple  AR System server that are in the same server group.

If the user provides a blank password, the AR System server does not attempt to cross-reference the password.

The JWT is a signed and base64 encoded string, and is sent back as a response body to the HTTP request.

The client receives the token and uses it in all subsequent REST API calls through the Authorization header using the AR-JWT schema.

For more information, see Overview of the REST API.

Connections by HTTP and HTTPS

By default, access to the REST API is over HTTPS only and HTTP access is not permitted. An attempt to access any of the API endpoints (with the exception of /api/about and /api/version) over HTTP will result in a 403 Forbidden error.

curl -i
HTTP/1.1 403 Forbidden
{ "message" : "Access forbidden", "code" : 403, "transient" : false
}

On a new server, you must configure HTTPS before attempting to access the API (including submitting requests by using the Swagger UI).

On the HTTPS configuration page, you can enable API access over HTTP, but this is not recommended in production and should only be used for testing purposes. API requests contain your Authentication token in an HTTP header, and this is passed in plain text when you use HTTP.

For the same reason, if the appliance is configured to redirect HTTP requests to HTTPS, API access over HTTP cannot be enabled. This is to avoid the illusion of security, where the initial request to the API is transmitted in plain text and contains either your API token or contains a username and password combination.

Authentication scheme

This API follows the OAuth 2.0 specification with API tokens. An authentication token is an opaque string. A token is associated with one  AR System user, which could be a local or LDAP user. Some tokens include an expiry time, after which they are no longer valid, while others are permanent and never expire. In both cases, the token should be protected as securely as a password.

For information about how to authenticate the  AR System REST API, see Using the REST API with Swagger.

To generate a token from the /jwt/login endpoint

All REST requests must be authenticated. REST uses token based authentication.

This example provides information to create a token.

Request URL

POST

Request headers

Content-Length: 32
Content-Type: application/x-www-form-urlencoded
username=Allen&password=password

Response body

HTTP/1.1 200 OK
Date: Wed, 03 Dec 2014 23:39:41 GMT
Content-Type: text/plain
Server: Jetty(8.1.15.v20140411)
eyJhbGciOiJIUzI1NiJ9.
eyJleHAiOjE0MTc2NTM1ODgsInN1YiI6IkFsbGVuIiwibmJmIjoxNDE3NjQ5ODY4LCJpc3MiOi
JXLUNTRUlFUk9FLTI5LmFkcHJvZC5ibWMuY29tIiwianRpIjoiSURHQUFCRFVDMllHSUFONkJGUTJBQUFFUEZBNVFXIiwiX2NhY2hlSWQiOjQ3LCJpYXQiOjE0MTc2NDk5ODh9.
V4LGLcEdwD8V_I4rzoWYYSZmEMA82LBB_lEfz4Xnz9Y

Following is a sample code snippet for creating the token.

package com.example;
import java.nio.charset.StandardCharsets;
import java.util.ArrayList;
import java.util.List;
import org.apache.http.HttpEntity;
import org.apache.http.NameValuePair;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.message.BasicNameValuePair;
import org.apache.http.util.EntityUtils;
public class Login { public static void main(String[] args) throws Exception { // start HTTP POST to get a token CloseableHttpClient httpClient = HttpClients.createDefault(); HttpPost httpPost = new HttpPost(""); // send the username and password List<NameValuePair> nvps = new ArrayList<>(); nvps.add(new BasicNameValuePair("username", "Allen")); nvps.add(new BasicNameValuePair("password", "password")); httpPost.setEntity(new UrlEncodedFormEntity(nvps)); // make the call and print the token try (CloseableHttpResponse response = httpClient.execute(httpPost)) { HttpEntity entity = response.getEntity(); String token = EntityUtils.toString(entity, StandardCharsets.UTF_8); System.out.println(token); } }
}

To release a token from the /jwt/logout endpoint

This example provides information to release a token.

Request URL

POST

Request header

Authorization: AR-JWT eyJhbGciOiJIUzI1NiJ9.
eyJleHAiOjE0MTc2NTM1ODgsInN1YiI6IkFsbGVuIiwibmJmIjoxNDE3NjQ5ODY4LCJpc3MiOi
JXLUNTRUlFUk9FLTI5LmFkcHJvZC5ibWMuY29tIiwianRpI
joiSURHQUFCRFVDMllHSUFONkJGUTJBQUFFUEZBNVFXIiwiX2NhY2hlSWQiOjQ3LCJpYXQiOjE0MTc2NDk5ODh9.
V4LGLcEdwD8V_I4rzoWYYSZmEMA82LBB_lEfz4Xnz9Y

Response body

HTTP/1.1 204 No Content
Date: Wed, 03 Dec 2014 23:46:03 GMT
Server: Jetty(8.1.15.v20140411)

Following is a sample code snippet for releasing the token.

package com.example;
import org.apache.http.StatusLine;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
public class Logout { public static void main(String[] args) throws Exception { String token = args[0]; // start HTTP POST to logout and invalidate the token CloseableHttpClient httpClient = HttpClients.createDefault(); HttpPost httpPost = new HttpPost(""); // add the token to the header httpPost.addHeader("Authorization", "AR-JWT " + token); // make the call and print the status try (CloseableHttpResponse response = httpClient.execute(httpPost)) { StatusLine status = response.getStatusLine(); System.out.println(status); } }
}

If you log in with your credentials on one computer and you try to log in from a different computer with the same credentials, you get a 9093 error. For more information about a 9093 error, see Error messages 8900 to 9100.

Required and optional headers

Following are the required and optional headers for REST APIs.
